SATA filter 500 series

  • Clean compressed air for perfect finishes.

SATA filter 500 series – Flow-optimised cyclone separator

  • SATA filter 584 | The flow-optimised cyclone separator (defined position), that ensures a constant and uniform air flow as well as an uninterrupted air rotation over a longer distance, minimises the pressure drop in the system resulting in a notably enhanced separation of particles.

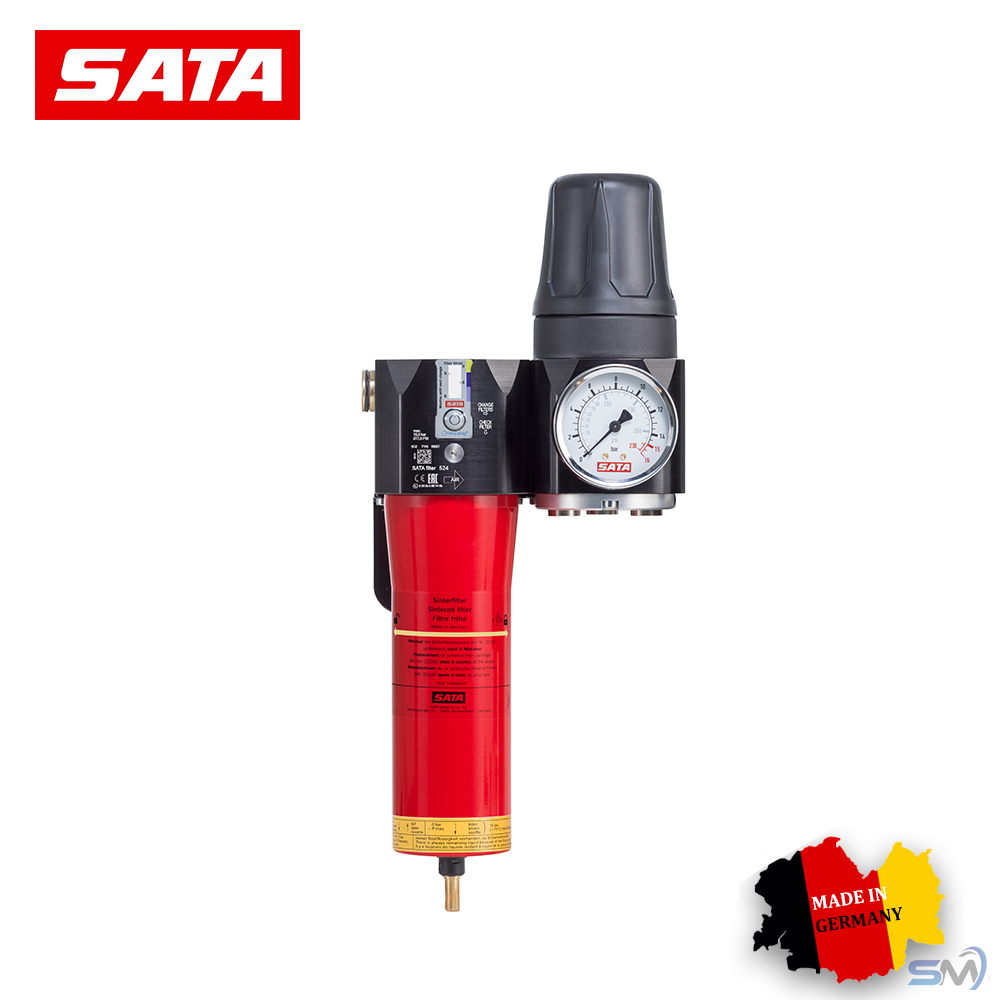

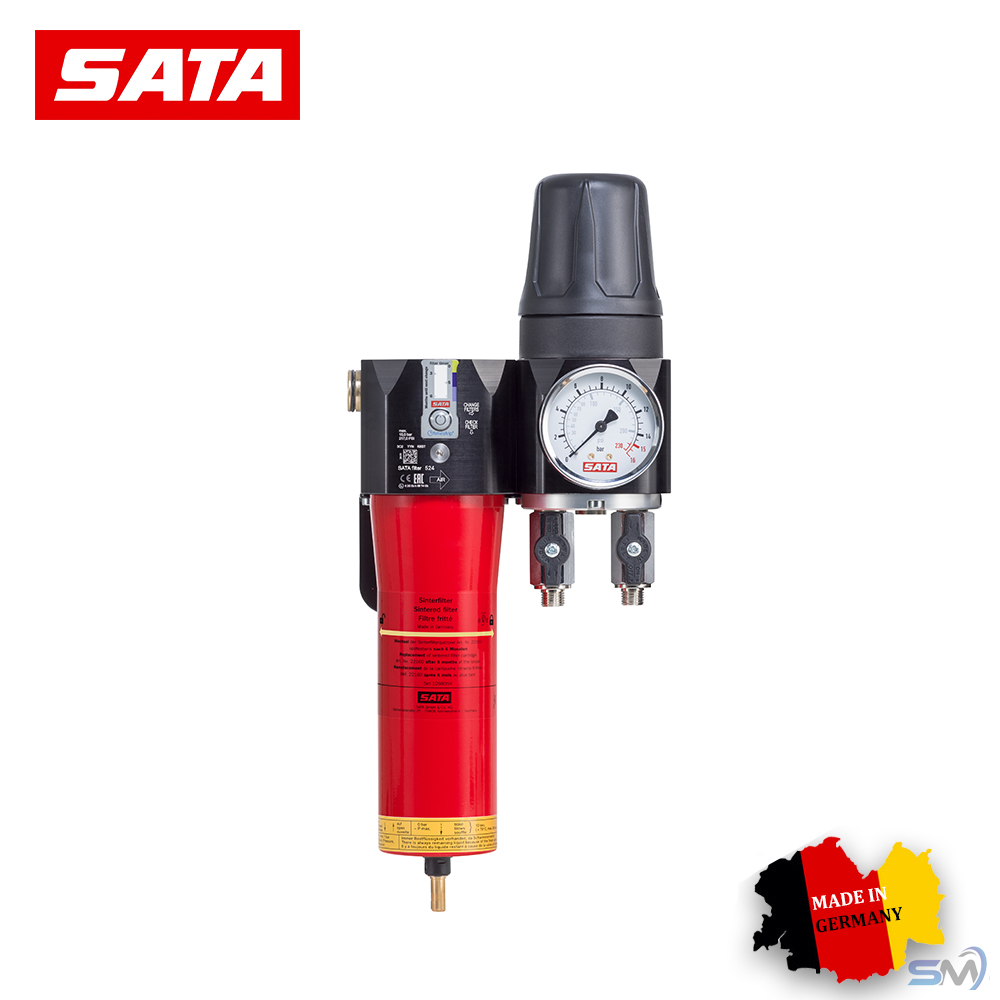

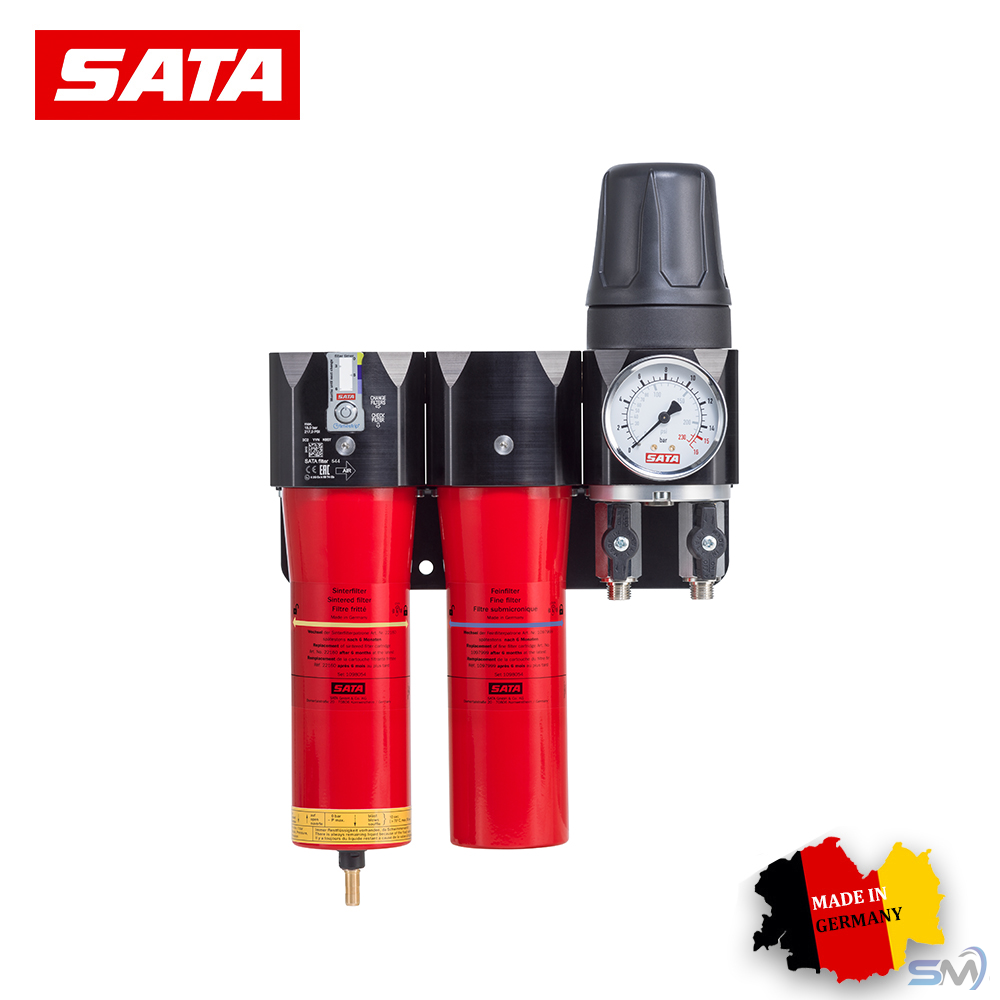

  • The SATA filter series 500 is available either as a one-stage sintered filter with water and oil separator, as a two-stage combination filter with sintered and fine filter, or as a three-stage filter unit with additional sintered activated charcoal filter.



    Product Benefits

    • Higher absorption of contaminations (compared to SATA filter 484) due to the new sintered activated charcoal filter
    • Synchronised maintenance: Filter maintenance only necessary every six months for all stages
    • Maintenance-free bayonet lock with haptic and acoustic feedback
    • Fine filter and activated charcoal filter cartridges fit perfectly by simply being inserted – no screw fittings or additional seals
    • Simple plug-in system for upgrading SATA filter 544 to 584
    • Maintenance-free sealing elements
    • Line connection possible either from the left or the right side
    • Air flow at 6 bar: 3,800 Nl/min



    Suitable areas of application

    • Car Refinish
    • Industrial Applications
    • Carpentry
    • Decorative Painting
    • Yacht and Boat Building
  • Net weight

    0,886 - 18,000 kg

    Max. inlet air pressure

    15,0 bar

    Max. air outlet pressure

    15,0 bar

    Number of filter stages

    1 - 3

    Max. air flow

    3800 Nl/min

    Max. ambient temperature

    +60 - +120 °C

    Exchange interval first filter stage

    6 Months

    Exchange interval second filter stage

    6 Months

    Exchange interval third filter stage

    6 Months
