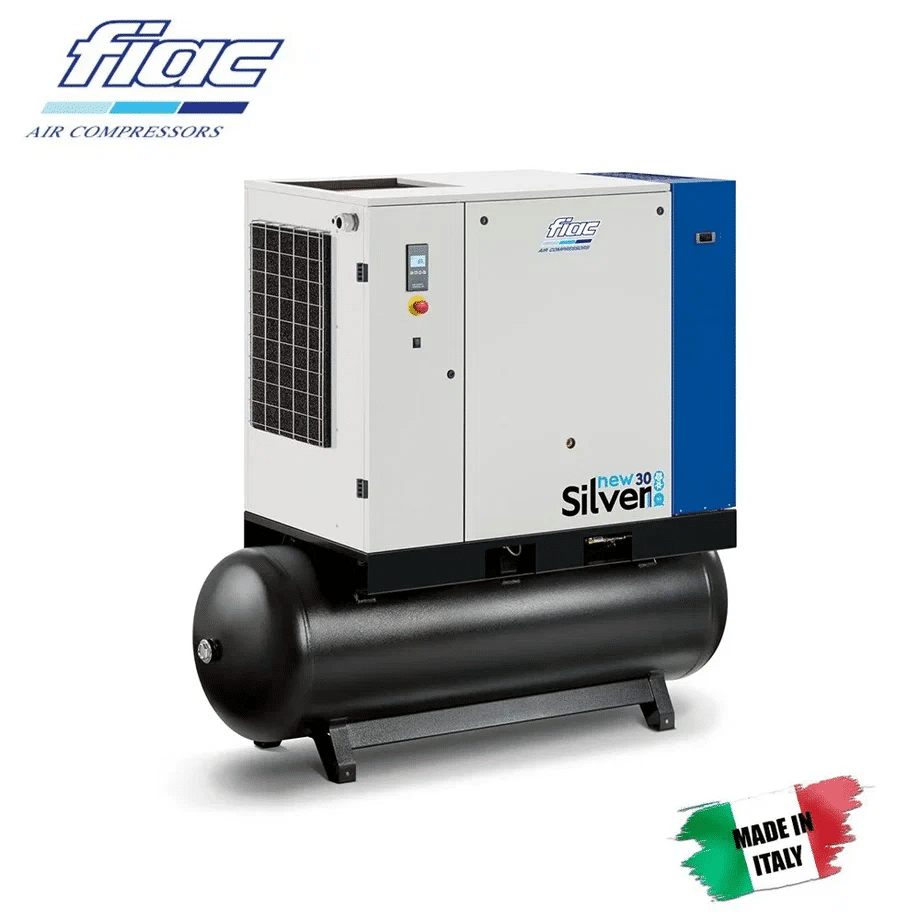

FIAC NS 30/500 D Industrial screw compressor with dryer
Main advantage FIAC NS 30/500 D is maximum power contained in a ready-made and reliable engineering solution. At a performance level above 3500 l/min, any error in the manual selection of individual components (a third-party dryer incorrectly selected for capacity or a narrowed diameter of the connecting pipes) leads to overheating of the system and a sharp drop in pressure for consumers.
Italian engineers FIAC have fully calculated this complex. You get a heavy-duty unit that guarantees the supply of dry, clean air without pressure pulsations, operates automatically and is protected by an honest 5-year European warranty. This is an uncompromising choice for enterprises that value the stability of the production cycle and are not prepared for downtime due to air shortages.
Screw compressor FIAC NS 30/500 D with a power of 24.4 kW (30 hp) is a flagship, ultra-efficient compressor station created for energy-intensive industrial enterprises, large factories and large-scale painting and body complexes. The main concept of this model is uncompromising autonomy. Factory equipment with a built-in refrigeration (refrigerator) dehumidifier eliminates the need to design a complex external air preparation system, purchase separate units and clutter up the working area of the workshop.
Producing an impressive 3570 l/min of dry, condensate-free air, this station is capable of becoming the central core of the pneumatic system of an entire plant, ensuring continuous operation of dozens of consumers 24/7.
Key advantages of the model:
-
Industrial capacity (3570 l/min): The colossal volume of air flow allows you to simultaneously supply compressed air to several painting booths, shot blasting or sandblasting stations, as well as pneumatic conveyor lines.
-
Built-in refrigerated dryer (Dryer): Cools compressed air to a dew point of +3°C, completely precipitating and removing natural moisture. This protects the pneumatic distributors of CNC machines from jamming, and paint guns from defects when applying water and solvent bases.
-
Premium Italian production: The compressor is completely designed, assembled and tested at the FIAC plant in Italy, which guarantees the standard quality of the screw unit and high reliability of the power electronics.
-
5 years official warranty: The warranty period, unprecedented for heavy equipment, confirms the enormous operational life of the unit, subject to regular maintenance.
-
Space saving and easy integration: The compressor, 500 liter receiver and dryer are mounted on a rigid single frame. It is enough to connect the station to the main line and 380V power supply – no complex and expensive external interconnect installation is required.
-
Microprocessor power saving: A smart control unit coordinates the operation of a powerful 24.4 kW motor and dehumidifier. The system flexibly adapts to the current air flow, promptly switching the compressor to unload mode, which significantly reduces energy costs.
| Parameter | Value/Indicator |
| Compressor type | Screw, oil, stationary complex (series D) |
| Performance | 3570 l/min (stable industrial flow) |
| Working pressure | 8 / 10 / 13 bar (various factory versions available) |
| Receiver volume | 500 liters (horizontal leveling storage) |
| Engine power | 24.4 kW / 30 hp (HP: 30) |
| Electrical parameters | 380 V / 3 phase / 50 Hz |
| Equipment | Built-in refrigerated air dryer |
| Country of origin | Italy (FIAC Air Compressors S.p.A.) |
| Warranty period | 5 years |
