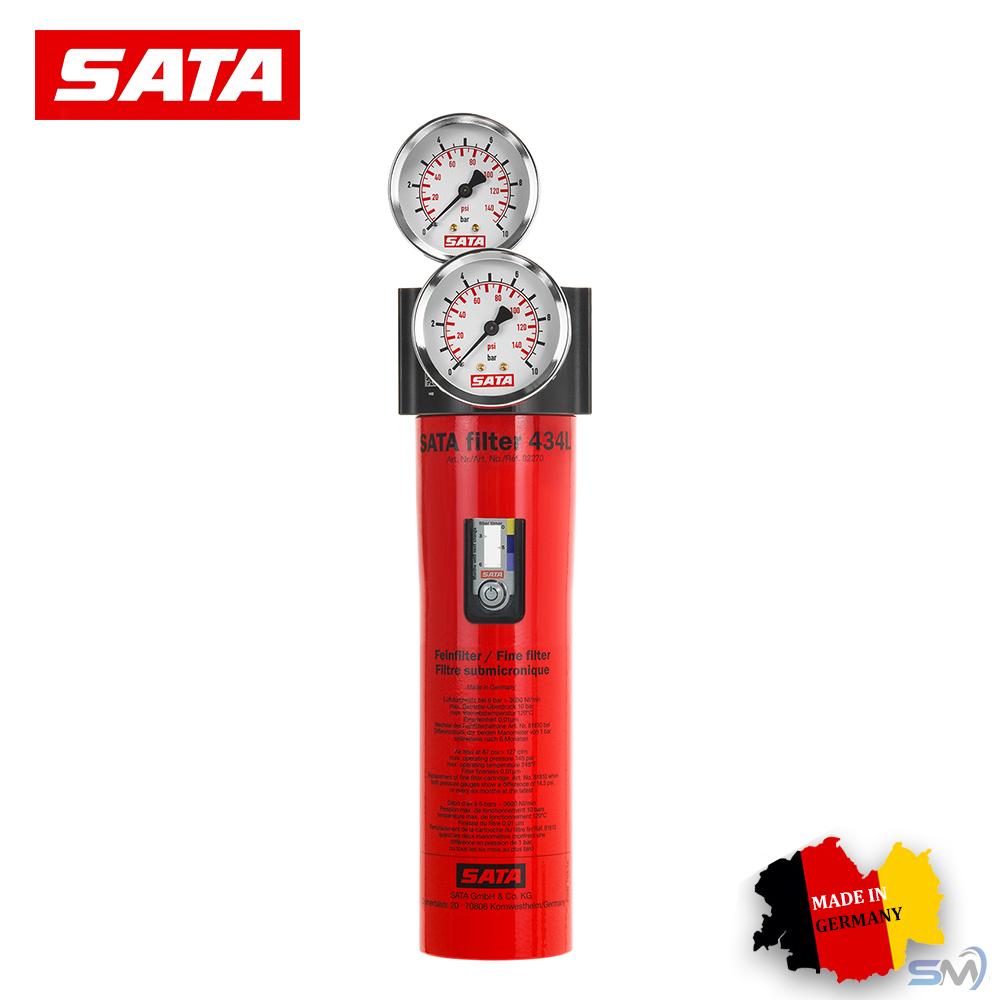

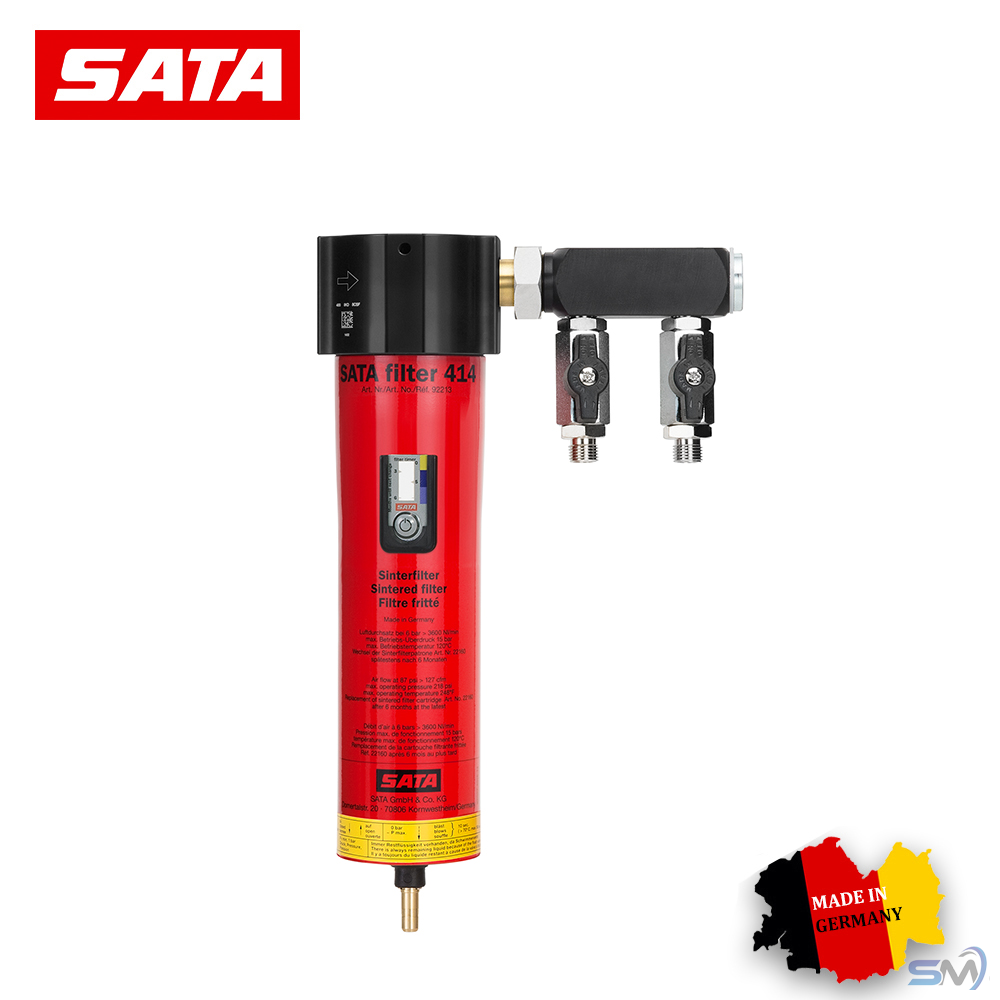

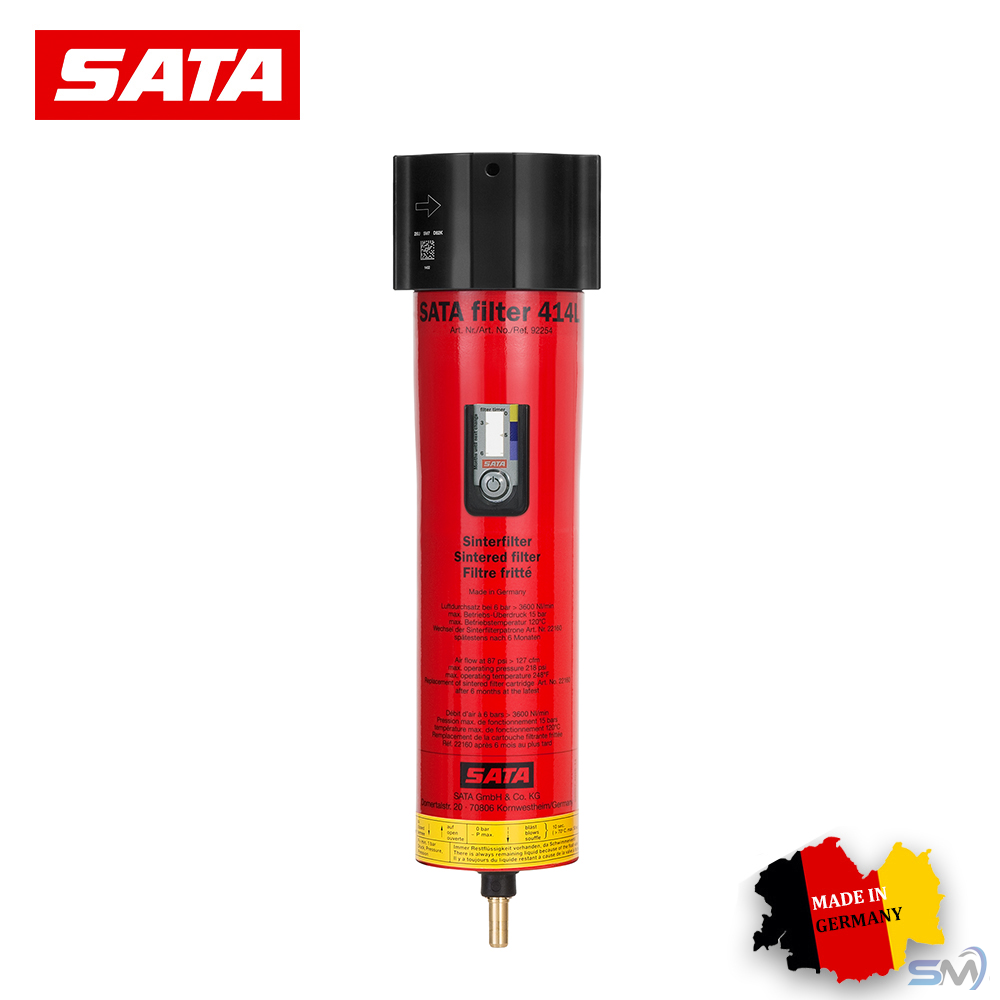

SATA filter 400 series
- High quality.
- Low maintenance.
SATA filter 400 series - Compressed air treatment with system

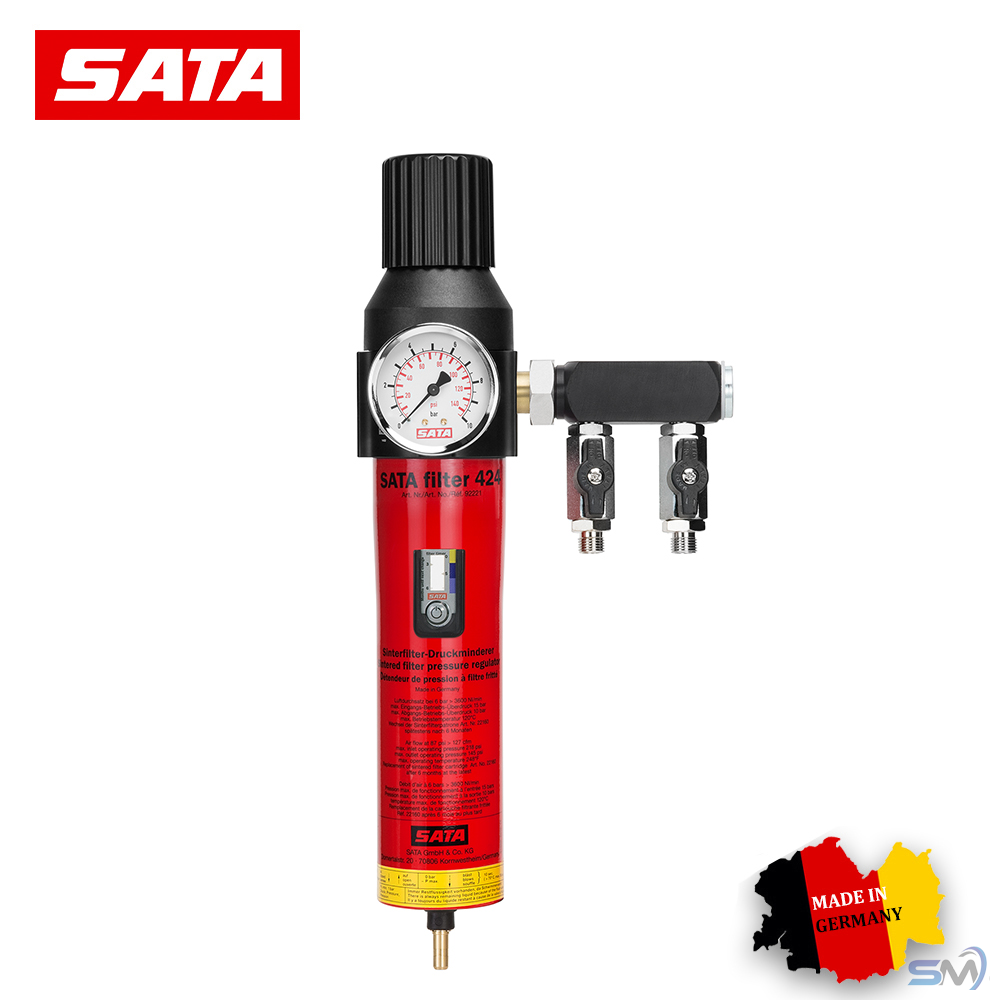

- SATA filter 424
-

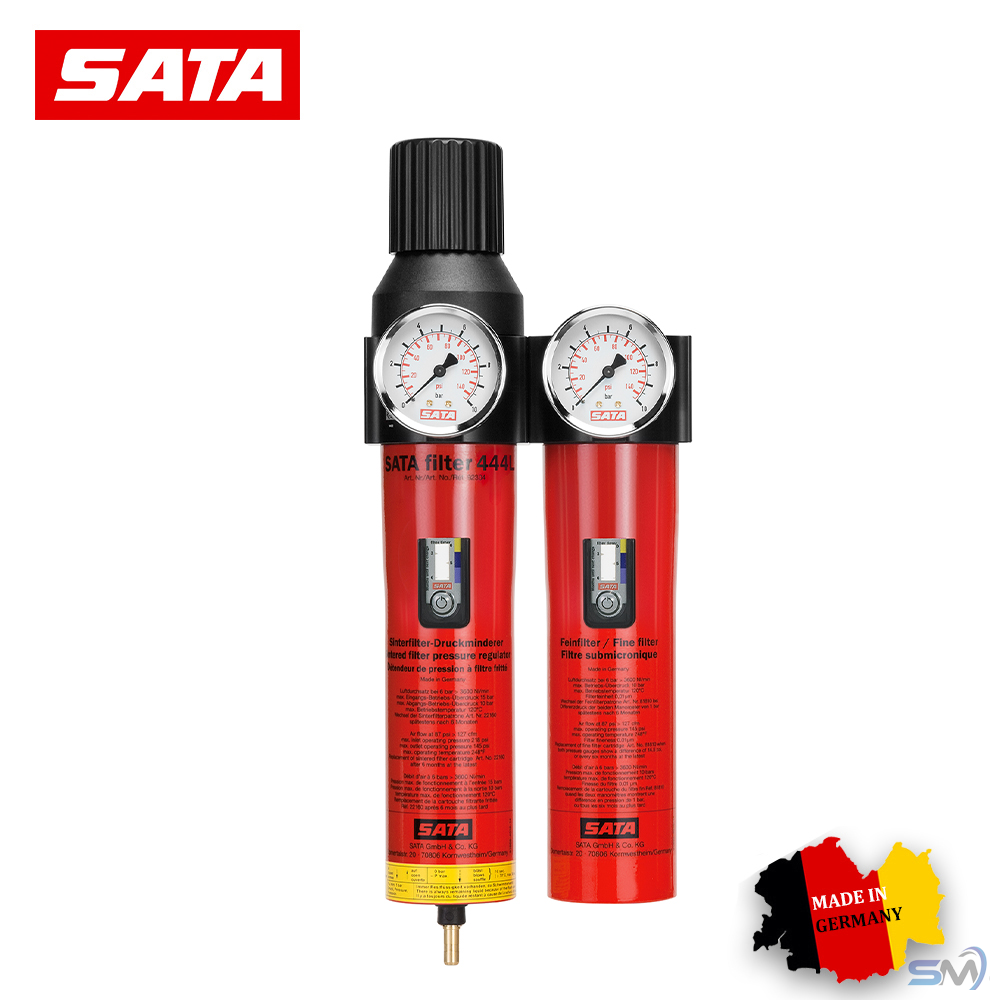

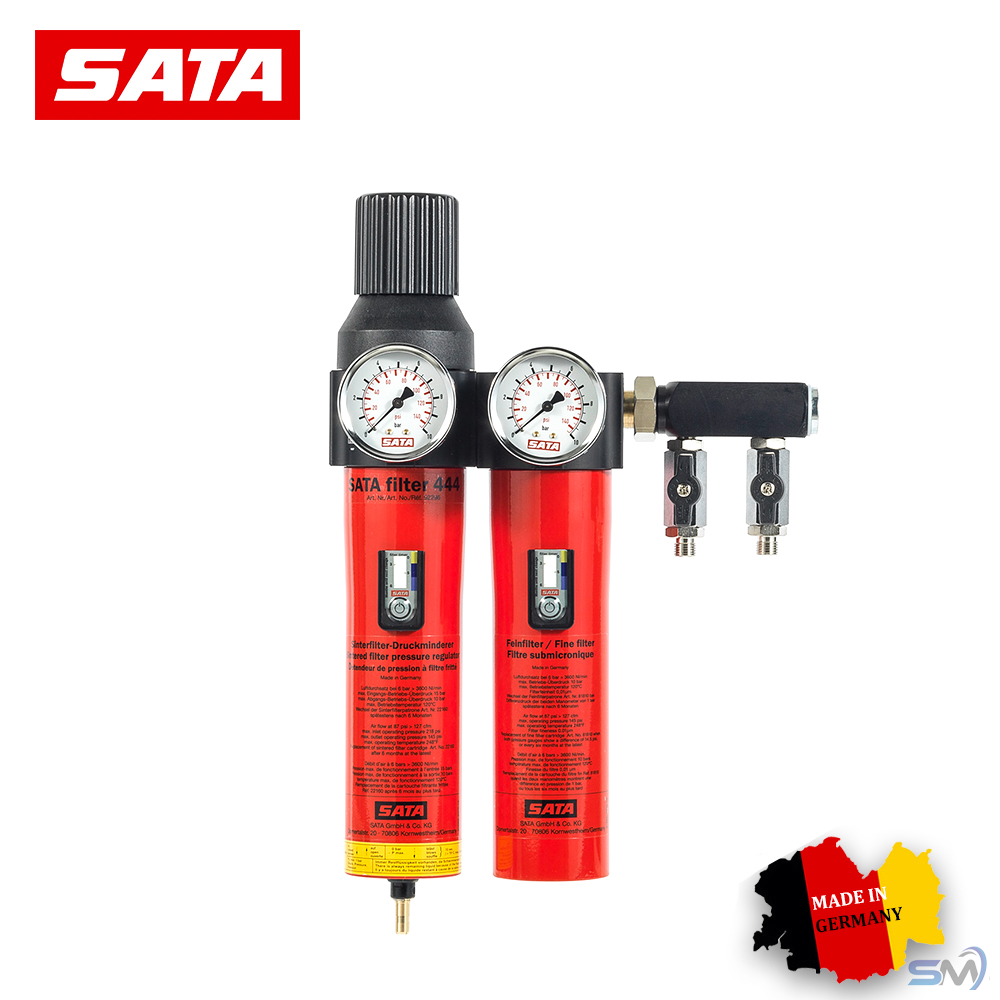

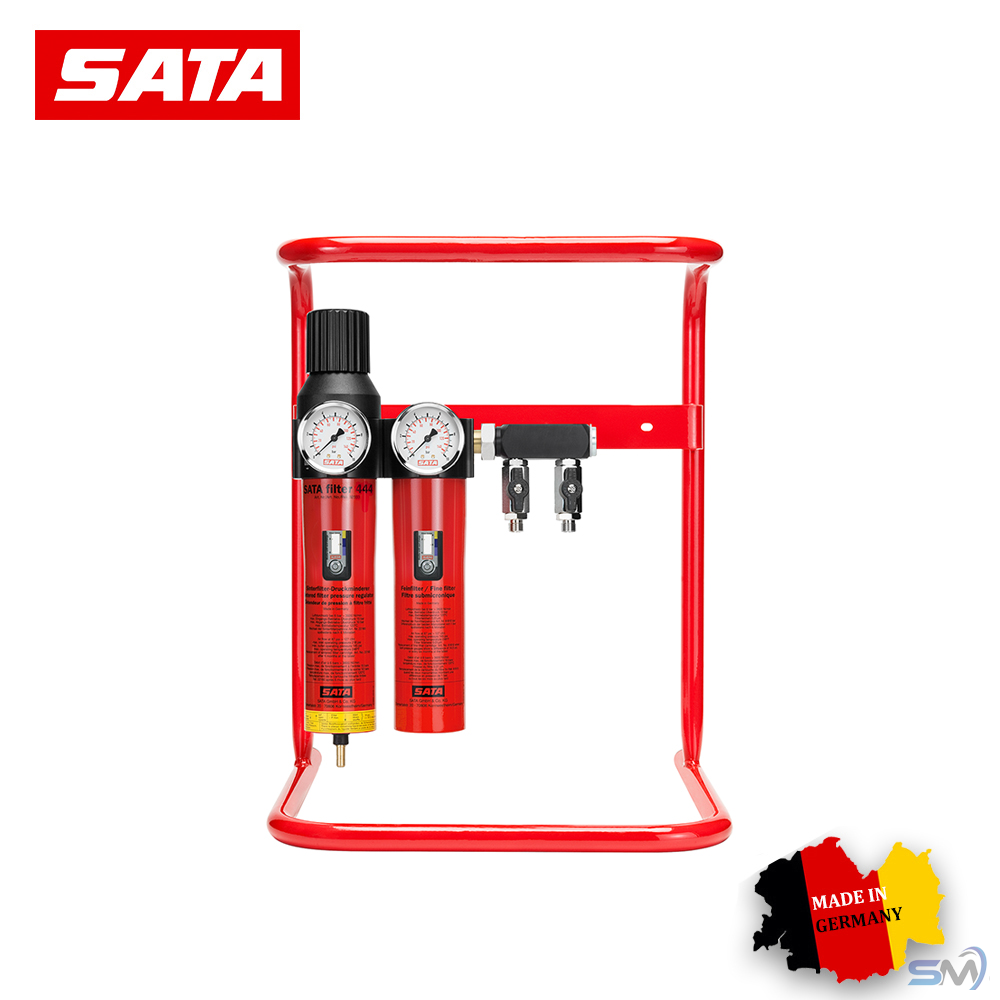

The SATA filter 400 series meets highest demands on quality and performance. The modular design allows an exact adaptation to different applications. The combination units SATA filter 444 and 484 are standard in paint booths - also for breathing air treatment.
Product Benefits
- Reliably prevents expensive reworking

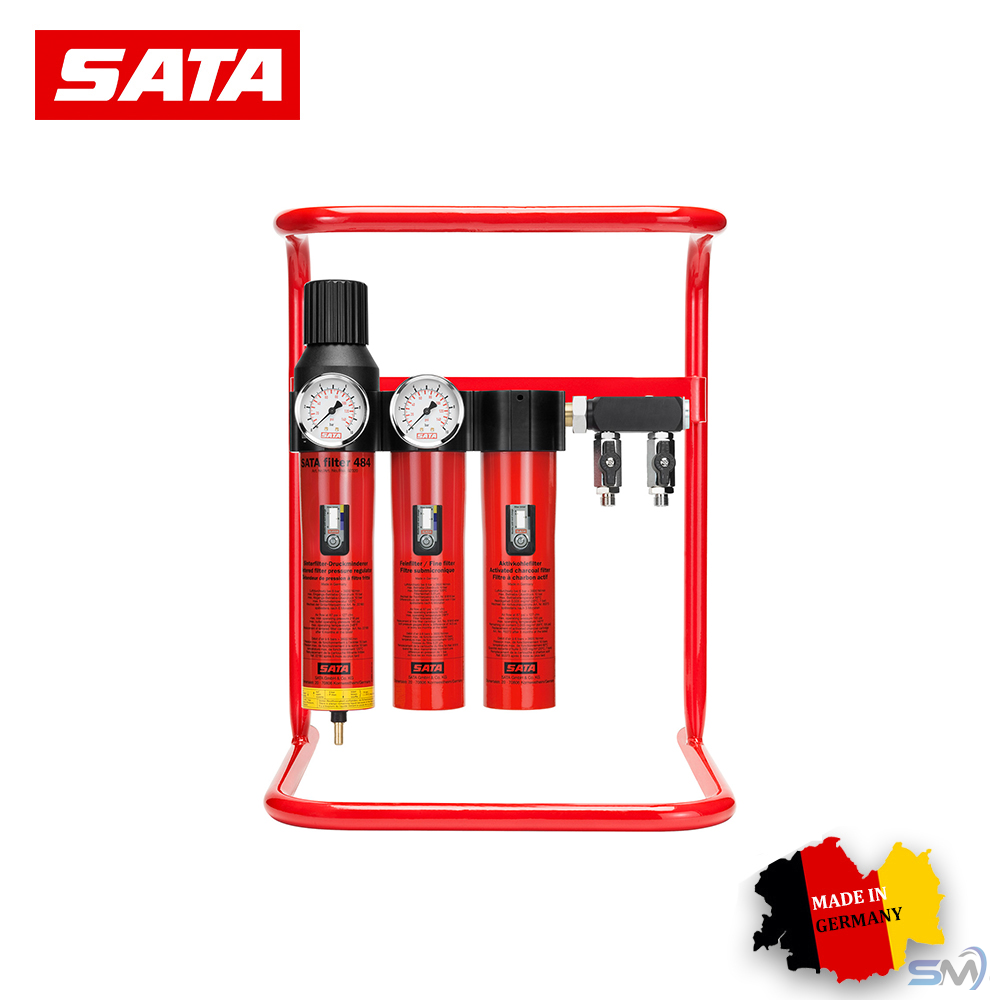

- As three-stage filter (SATA filter 484) suitable for use with water-based paints and ambient air-independent breathing protection systems
- Inexpensive and economical
- Robust metal housing, easily suitable for temperatures up to 120°C
- Very high air flow rate: 3,600 Nl/min at 6 bar inlet flow pressure
- Available with outgoing module or for line installation
Suitable areas of application
- Car Refinish
- Industrial Applications
- Carpentry
- Decorative Painting
- Yacht and Boat Building
-
Packaging unit
1,0 Pieces
Net weight
1,962 - 15,400 kg
Max. inlet air pressure
15,0 bar
Max. air outlet pressure
10,0 bar
Number of filter stages
1 - 3
Max. air flow
3600 Nl/min
Max. ambient temperature
+60 - +120 °C
Exchange interval first filter stage
6 Months
Exchange interval second filter stage
6 Months
Exchange interval third filter stage
3 Months
